Trend Hinge Jig One Piece Hinge Recessing Jig Kit HINGE/JIG

Product Code: HINGEJIG

Online Price:


Free UK & Ireland Delivery  |
Availability: In stock
Share this product on:
  • Product description

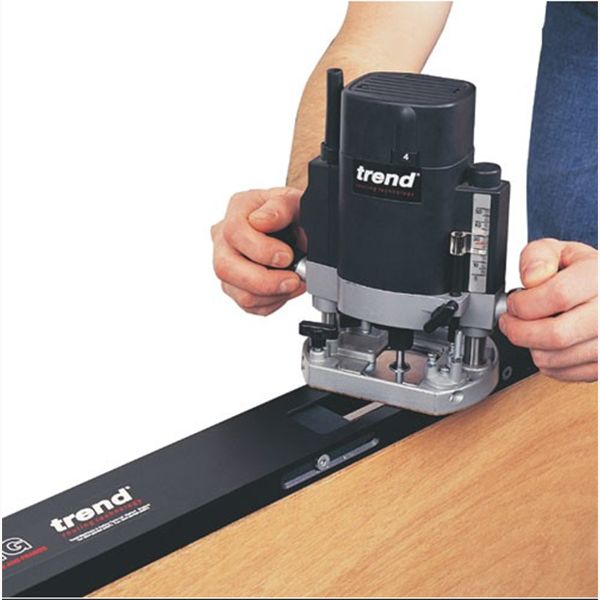

    Trend HINGE/JIG Hinge Recessing Jig For Wooden Doors And Frames

    The Trend hinge jig template set allows the user to easily mark and router hinge recesses of various sizes with an easy and fast set up increasing productivity

    • It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
    • Used on-site & in joinery shops to increase productivity with excellent results.
    • Four apertures for fire door requirements.
    • No need for marking out in the conventional way.
    • Quick & simple to set-up as the hinge is used as the pattern.
    • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
    • Use with a light duty plunge router with 1/4 inch collet.
    • Long reach router cutter required, 12mm diameter with 70mm overall length.
    • Angled position slots to prevent creep.
    • Unibase may be needed.
    • Patent No. GB2285410.
    • T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

    The Trend One Piece Hinge Jig Kit Is Complete With:

    4 x Apertures
    2 x Bradawls with spacer
    1 x 16mm guide bush
    1 x T-Handle hex key
    1 x 4mm spacing gauge
    1 x Plastic storage tube
  • Technical Specifications:

    Shipping Weight:.....8.00kg
    Hinge sizes possible:
    Length min.:…..2 5/8" (67 mm)
    Length max.:…..5" (127 mm)
    Width min.:…..3/8" (9.5 mm)
    Width max.:…..1 3/8" (35 mm)

    Door sizes possible:
    Height min.:…..6' 5" (1955 mm)
    Height max.:…..6' 10" (2100 mm)*
    Thickness min.:…..5/8" (16 mm)

    * Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
