DeWalt DCH481N 54V XR Flexvolt SDS Max Rotary Hammer Drill Body Only

Product Code: DCH481N

Online Price:

£559.99

INC VAT
Free UK & Ireland Delivery  |
Availability: In stock
Share this product on:
  • Product description

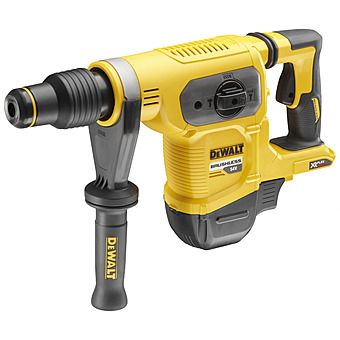

    DeWalt DCH481N-XJ 54V XR Flex Volt SDS-Max Hammer Drill | Bare Unit


    The DCH481 is part of DeWalt's brand new 54v XR Flexvolt range which provides cordless power tools with a true corded performance. This SDS Max Hammer Drill would be an excellent addition to any DIY enthusiasts or tradesman's repertoire of tools. The DCH481 provides 3 modes of operation including Hammer, Rotary only, and Chisel only, making this Drill ideal for a wide range of applications including drilling anchors and fixing holes into concrete, brick and masonry up to 40mm in diameter. This Drill by DeWalt is designed to perform and protect as it has an extremely low level of vibration at 9.4m/s², which will minimise user fatigue over long periods of operation. Featuring an Anti-rotation system which detects a loss of control and instantly reacts by cutting out the power.

    Features:
    • Bright LED work light which improves visibility.
    • Compact, lightweight and ergonomic design.
    • Designed to perform and protect - Low Vibration output at 9.4m/s².
    • True corded performance.
    • Anti-rotation system.
    • Brushless motor for improved runtime and reduced maintenance.
    • Ideal for drilling anchors and fixing holes into concrete, brick and masonry.
    • Rotation stop mode for chiselling.
    • Impact stop mode for rotary only drilling with dry diamond cores.

    Please Note: Bare Unit, Batteries and Charger NOT included


    Includes:
    1 x SDS Max Hammer Drill
    1 x Multi-position slide handle

  • Technical Specifications:

    Shipping Weight:.....5.40kg
    Tool Holder:..... SDS-Max
    Power Input:..... Watts
    Power Output:..... Watt
    Impact energy:..... (EPTA 05/2009) 6.1 J
    Load Speed:..... 540 rpm
    Blows per Minute:..... 3150 bpm
    Max. Drilling Capacity [Concrete]:..... 40 mm
    Max. Drilling Capacity [Breakthrough bit]:..... 65 mm
    Max. Drilling Capacity [Core bit]:...... 100 mm
    Hand/Arm Vibration:..... Hammer drilling into concrete 9.4 m/s²
    Uncertainty K 1 (Vibration):..... 1.5 m/s²
    Hand/Arm Vibration - Chiselling:..... 8.5 m/s²
    Uncertainty K 2 (Vibration):..... 1.5 m/s²
    Sound Pressure:..... 96 dB(A)
    Sound Pressure Uncertainty:..... 3 dB(A)
    Sound Power:.... 107 dB(A)
    Sound Power Uncertainty:..... 3 dB(A)
    Manufacturer... DeWalt
