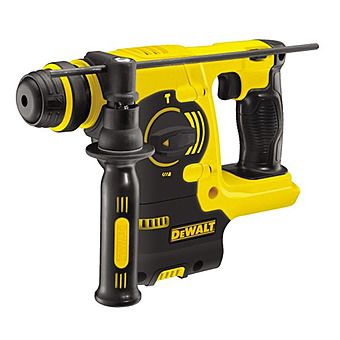

DeWalt DCH253N 18v XR SDS Plus Cordless Rotary Hammer Drill Body Only

Product Code: DCH253N

Online Price:


Free UK & Ireland Delivery  |
Availability: In stock
Share this product on:
  • Product description

    DeWalt DCH253 18V XR Cordless Rotary Hammer Drill | SDS Plus | Bare Unit

    The DeWalt DCH253N is a cordless Hammer Drill designed with professional tradesmen in mind, this tool is ideal for drilling anchors and fixing holes into concrete, brick and masonry. The DCH253N has excellent vibration control of 6.6m/s²  along with a soft-grip design which will make the drill more comfortable to use over prolonged periods of time, therefore maximises operating periods. The DeWalt Hammer Drill has built in LED lights which provides extra lighting in your workspace, the drills design has a multi-position slide handle and a lightweight design making it versatile and easy to handle . The Drills rotation stop mode is ideal for light chiselling in plaster, tiles and render.

    • Built in LED Worklight.
    • Lightweight design and multi-position slide handle making it easy to handle.
    • Best in class vibration, 6.6m/s².
    • Floating Gearbox.
    • Electric brake.
    • Single-Speed Variable & Reverse.
    • Drill, Hammer Drill & Chisel.
    Bare Unit: Batteries and Charger NOT Included
    1 x DeWalt Cordless Hammer Drill
  • Technical Specifications:

    Shipping Weight:.....3.20kg
    Power Input:.....Watts
    Voltage:.....18 V
    Power Output:.....400 Watt
    Impact energy:.....(EPTA 05/2009) 2.1 J
    No Load Speed:.....0-1200 rpm
    Blows per Minute:.....0-4500 bpm
    Max. Drilling Capacity [Concrete]:......24 mm
    Max. Drilling Capacity [Wood]:.....26 mm
    Max. Drilling Capacity [Metal]:.....13 mm
    Weight:.....2.5 kg
    Length:.....301 mm
    Height:.....202 mm
    Width:.....85 mm
    Hand/Arm Vibration:.....Hammer drilling into concrete 6.6 m/s²
    Uncertainty K 1 (Vibration):......1.5 m/s²
    Hand/Arm Vibration:.....Chiselling 5.4 m/s²
    Uncertainty K 2 (Vibration):.....1.5 m/s²
    Hand/Arm Vibration - Drilling into metal <2.5 m/s²
    Uncertainty K 3 (Vibration) 1.5 m/s²
    Hand/Arm Vibration - Screw driving without impact <2.5 m/s²
    Uncertainty K 4 (Vibration) 1.5 m/s²
    Sound Pressure:..... 86 dB(A)
    Sound Pressure Uncertainty:..... 3 dB(A)
    Sound Power:..... 97 dB(A)
    Sound Power Uncertainty:..... 3 dB(A)
    Battery chemistry XR Li-Ion
    Battery Capacity:..... Ah
    Manufacturer... DeWalt
