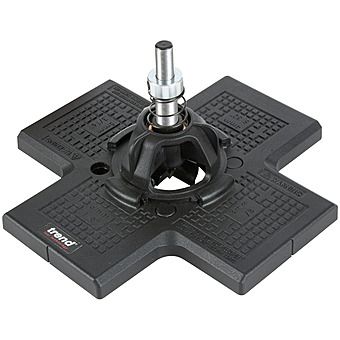

  Trend Euro-Style Concealed Cabinet Hinge Drilling Jig | 3-6mm Inset | CAB/JIG/B


  A pin guide type drilling jig from Trend that has been developed specifically for euro-style concealed hinges for cabinetry. It uses pins to align to the edge of the hinge side of a cabinet door, and depend on the direction you mount the jig, gives you a 3, 4, 5 or 6mm inset position from the edge. The jig not only allows you to drill the large hole, but pilot holes for the two screws of the hinge.

  The drill guide itself is spring loaded, with an adjustable depth stop to prevent overdrilling. The large wings on the jig are there to provide a wide platform to clamp, with whatever clamp type is your preference. This jig kit gives you everything you need for an accurate euro style hinge install - hole diameter, hole depth, inset distance, alignment and pilot holes. Watch the video below for an excellent demonstration from Trend UK.




  Features:

  • Guides for diameter, depth, inset, alignment and pilot holes.
  • Includes a 35mm diameter machine drill bit.
  • Suitable for use with a combi-drill.
  • Can give 3, 4, 5, or 6mm hinge insets.
  • Ideal for use with manmade boards like MDF.
  • Nylon jig body with large wings for clamping.
  • Adjustable depth stop.

  Includes:

  1 x Nylon Clamping Jig
  1 x Drill Bit Holder
  1 x Spring & Plate
  2 x Dogs/Pins
  1 x Pilot Hole Plate
  1 x 35mm TCT Drill Bit
  1 x Depth Stop
  1 x Hex Key
• Technical Spec

  Technical Specifications:

  Shipping Weight:.....1.00kg


  Manufacturer... Trend
