• Product Description

  Product description

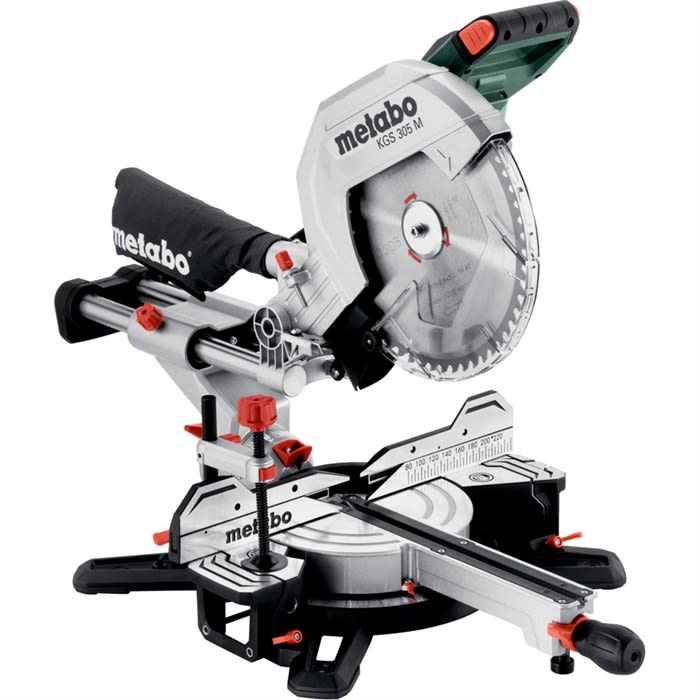

  Metabo KGS 305 M 305mm Sliding Compound Mitre Saw | 110mm Depth of Cut


  The Metabo KGS 305 M is the largest sliding compound mitre saw in the Metabo M-class range, built for high-capacity crosscutting on site and in the workshop. Joiners, site carpenters, and timber frame builders rely on this machine for sizing thick timber joists, wide floorboards, and heavy framing studs. It combines a large 305mm cutting capacity with a portable frame.

  The sliding mechanism provides a maximum cutting width of 305mm and a cutting depth of 110mm at 90°. At a 45° mitre and bevel angle, the saw cuts up to 215mm wide by 67mm deep.

  Metabo builds the chassis from die-cast aluminium, keeping total weight to just 18.6 kg with ergonomic carrying handles. The Precision Cut Line (PCL) shadow line LED projects an exact cut line without manual recalibration. The saw head tilts up to 47° left and right, while the turntable features pre-set stop points up to 50° left and 60° right. An electronic soft start, fast blade brake, trenching depth guide, and dust extraction scoop maintain working efficiency.

  This machine comes complete with a 305mm 56-tooth Precision Cut Wood saw blade, two pull-out table length extensions, a length stop, a material clamp, a blade change tool, a cable winder, and a chip collection bag. Available in 110V for site transformers and 230V for workshop mains supply, this saw handles first-fix timber framing, roof trusses, composite decking, and internal joinery trim. The 110V version is rated at an input power of 1500W and the 230V is rated at 1600W, with a S6 (20%) rating of 2000W.

  Features:

  • Precision Cut Line (PCL) shadow system projects an accurate line across the material using an LED light without requiring laser recalibration.
  • High-torque 2000W motor drives the 305mm blade to deliver a maximum 110mm depth of cut and 305mm crosscut capacity.
  • Dual-bevel saw head tilts up to 47° left and right to allow fast angle and compound cuts without flipping the workpiece.
  • Turntable features positive stop positions up to 50° left and 60° right for rapid setting of common mitre angles.
  • Die-cast aluminium base structure with carrying handles ensures site durability at a manageable weight of 18.6 kg.
  • Electronic soft start and fast blade brake protect drive components and stop blade rotation quickly between operations.
  • Extendable and removable side table extensions support long timber lengths and structural boards.
  • Integrated dust scoop directs wood chips into the included collection bag or connected extraction vacuum to maintain clean sightlines.

  Includes:

• Technical Spec

  Technical Specifications:

  Manufacturer:.....Metabo
  Max. No Load Speed 3700 rpm
  Blade Diameter 305 mm
  Blade Bore 30 mm
  Bevel Capacity Left 47°
  Bevel Capacity Right 47°
  Mitre Capacity Left 50°
  Mitre Capacity Right 60°
  Cutting Capacity at 90°/90° 305 x 110 mm
  Cutting Capacity at 45°/45° 215 x 67 mm
  Max. Cutting Depth 110 mm
  Sound Power dB(A) 100 dB(A)
  Sound Pressure dB(A) 87 dB(A)
