  Product description

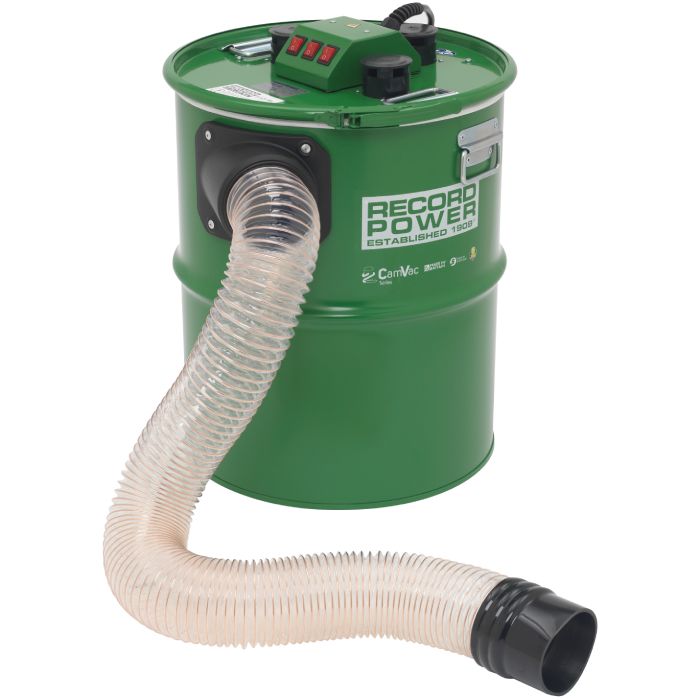

  CamVac 90 Litre Large Extractor Kit


  A dust extractor with large 90 litre collection capacity, great for large workshops, this is capable of lifting more than just sawdust and chips. The CGV386 is available with either two motors or three, with 108 or 162 litres per second air flow respectively. Each motor draws 1,000 Watts, meaning that the triple motor version is the maximum power possible on a standard 13 Amp circuit.

  The primary filtration method for the CGV386 is a cyclone. Incoming air goes in a spiral around the drum which causes heavier particles to fall out, that would otherwise quickly clog up the filters. The motors are each wrapped in a cloth filter that protects the motor from damage, and a paper filter that removes particles as small as 0.5 microns.

  Both versions of this machine (two & three motor) have been replaced with the new style of inlet developed in-house at Record Power in the UK. This user-replaceable part not only allows for much easier fitting and removal of the dust extraction hose, but also has a specially shaped outlet to improve the effectiveness of the cyclone.

  Features:

  • Runs from standard 230v mains.
  • Available with two or three motors.
  • Each motor has a 1KW input power.
  • Large 90 litre collection capacity.
  • Triple filtration system.
  • Perfect for large workshops.

  Includes:

  1 x CGV386 90L Large Dust Extractor with new Bayonet Fitting
  1 x Easy-Fit Cuff
  2m x Hose
• Technical Spec

  Technical Specifications:

  Shipping Weight:.....21.50kg
  Manufacturer:.....Record
  Weight:..... 17-19.5kg
  Filtration:..... 0.5 micron
  Motor Input:..... 1KW per motor
  Air Flow:..... 54L/sec per motor
  Inlet Diameter:..... 4"
  Dimensions (W/D/H):..... 478mm x 520mm x 573mm
  Operating Voltage:..... 230v
