Finding it hard to keep that level head? Check out our latest measuring tools!



The GRL400H Self Levelling Rotary Laser

This piece of equipment made by Bosch is the professionals dream levelling tool. It is suited to outdoor environments thanks to its robust construction and weatherproofing, through a glass enclosed cage, it offers dust and water resistance (IP56) rated proofing.

It is a self levelling rotary laser giving you a 360° angle of your project. The laser has a 1300ft working range with an accuracy of up ±3/32" approx (2.38mm) at a 100ft range. With the lasers ability to work within such a varied range of distances it makes it ideal for outdoor and indoor purposes. The lasers self levelling feature uses a specialised motor known as a disturbance motor that ensures consistent accuracy. In addition to this the GRL400H has two large rubber grips for safe and easy carrying.

Heavy Duty Aluminum Tripod - BT170 HD

This aluminum tripod is suited to the GRL400H laser. It is manufactured from aluminum giving the tripod a high tensile strength while making it light and easy to carry. The legs are double branded with heavy gauge aluminum, giving the tripod additional stability when in use. The tripod is constructed with hinge fittings, as oppossed to rivet fittings, making dismantling, replacing parts or general maintenance more efficient. It extends to a maximum height of 65 inches (1.65m / 5ft 4") and features a flat, elevator head with 5/8 - 11 thread.



LR1 Rotary Laser Receiver

So this little device comes as part of the package. This is the LR1 rotary receiver laser, which is designed to interact with Bosch and all red light rotary lasers. It features a dual-sided LCD display for ease of use and means that readouts can be obtained from either side of the receiver. Built in heavy duty magnets also come as standard with this device, these magnets offer a secure attachment to metal surfaces, ideal for suspended ceiling installations. An LCD arrow display and selectable audio signal offers users two methods of verification of 'on-grade' position indication.

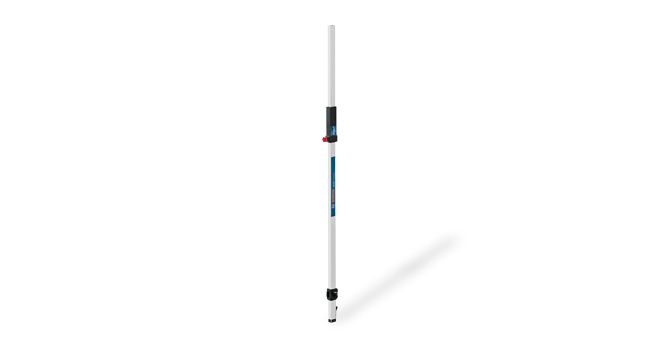

GR240 Professional Reciever Rod

This rod has been manufactured from a high quality aluminum profile, producing a robust and lightweight piece of equipment. The rod can be used in conjunction with the GRL400H rotary laser reciever. It is extendable up to 2.4m long and is even suited for use under extreme weather conditions.

Laser Spec	Receiver Spec	Tripod Spec	Rod Spec
Accuracy:... 3./32"	Accuracy:..... ±1mm / ±3mm	Closed Height:..... 107cm	Length:..... 2.4m
Battery Voltage:..... 1.5	Dimensions:..... 5.8" x 2.9" x 1.5"	Extended Height:..... 165cm	Sections:..... 2
Laser Diode:..... 635nm Class 2	Power:..... 9V	Tripod Thread:..... 5/8 - 11	Units of Measure:..... m / cm
Leveling Type:..... Self-Leveling up to 5°	Range:..... up to 650ft	Material:..... Aluminium	Material:..... Aluminium
Mount Threading:..... 5/8-11
Operating Temperature:.... 10° C - 50° C
Range with Detector:..... Up to 1300f
