  Product description

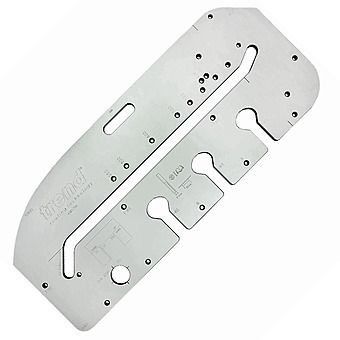

  Trend 700mm Kitchen Worktop Jig KWJ700


  The Trend KWJ700 worktop jig is 12mm solid laminate making it hard wearing. The Trend worktop jig can be set up and create cuts in under 15 minutes. The Trend worktop jig can produce a wide range of cuts in worktops at various fixed lengths, it is ideal for the serious tradesman.

  Features & Benefits:

  • Hard wearing solid laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
  • Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
  • Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide worktops.
  • Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
  • Three open-ended bolt recesses (dog bone style) for 150mm bolts.
  • Engraved lines for short 65mm bolts and worktop cross-cut.
  • 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
  • Engraved markings for identification of pin holes.
  • Pins made from ABS plastic for strength.

  Includes:

  The Trend KWJ700 Worktop Jig Is Complete With:

  6 x ABS Plastic Pins

• Technical Spec

  Technical Specifications:

  Shipping Weight:.....6.50kg
  Length:…..985 mm
  Width:…..390 mm
  Thickness:…..12 mm
  Weight :…..5.4 kg
  End Cut:…..45 degrees
  Corner Radius:…..40 mm
  Corner Radius:…..100 mm
  Corner Radius:…..400 mm
  Corner Mitre Joint:…..45 degrees
  Female cut material width loss:…..35 mm


  Manufacturer... Trend
