  Product description

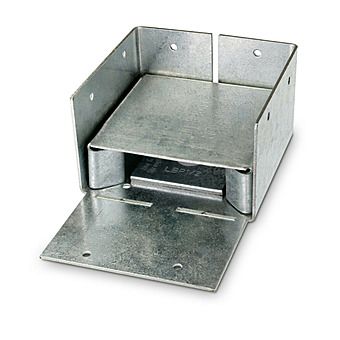

  Simpson Strong Tie ABW44RZ Rough 4” x 4” Adjustable Post Base


  The Simpson adjustable post base is ideal for fixing posts to concrete floors, patios etc. The adjustable post base is supplied with a 25mm stand-off plate which raises the post preventing the risk of water absorption which can lead to rot. The base is fully adjustable during installation and removes the need to dig, chisel away concrete or bed the post in new concrete. The adjustable post base is simple and easy to use.

  Please note: The anchor bolt and nut are not included

  Features & Benefits:

  • Adjustable placement on anchor bolt
  • 1” stand-off to prevent post rot
  • Galvanised finish


  Installation Instructions:

  • Install ½” (12mm) diameter anchor bolt in concrete, leaving ½” – 1” above surface
  • Position base and plate washer over anchor and install nut loosely
  • Place stand-off into base and install post, nailing 3 vertical sides
  • Adjust post position and tighten nut snugly
  • Bend up remaining side and fasten
• Technical Spec

  Technical Specifications:

  Shipping Weight:.....0.75kg
  Post size:…..4” x 4” (100mm x 100mm)

  Width:…..104 mm
  Length:…..104 mm
  Height:….. 50 mm


  Manufacturer... Simpson Strong Tie
• Customer Reviews

  Customer Reviews:

  ABW44RZ stand off base

  Reviewer:

  Date posted: 27/08/2014 18:20 .

  Product:  Simpson Adjustable Post Base 4” x 4” - ABW44RZ

  This Simpsons stand off base is for use with 100x100mm rough sawn timber posts.

  If you are looking for a similar post base for use with a 90x90mm planed pressure treated timber post, you will need a ABW44Z.

  Overall Rating:



  5/5
